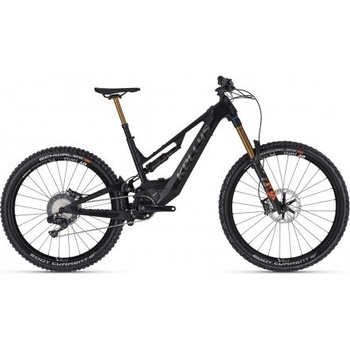

Kellys Theos F90 2024

Rám

KELLYS THEOS F-series - Thermoplastic Hybrid Steel-Carbon Composite a.k.a. FEATHER® by Rein4ced assembled by advanced robotic manufacturing / Designed & manufactured in EUROPE / Think Link® suspension system, 170 mm rear travel, integrated removable battery, 1.8“ tapered HT, post mount 203 mm, mullet 29" / 27.5"+ wheelset, 12x148 mm Boost thru axle

Motor

SHIMANO EP8, 85 Nm, 36 V

Batéria

KELLYS Re-Charge K1 Li-ion internal removable 725 Wh / capacity 20 Ah, co-developed by KELLYS-BMZ

Radiaca jednotka

SHIMANO SW-E7000-L for assist

Ovládanie

SHIMANO SC-E7000

Vidlica

FOX 38 Float Factory, Kashima Coat (29) Boost, 180 mm, Float Evol / GRIP2 damper / 15QR thru axle

Zadný tlmič

ROCK SHOX Super Deluxe Ultimate, DebonAir / RCT / Open-Threshold (230x65 mm)

Kľuky

SHIMANO Deore XT M8150 Hollowtech / CRE70 (34T) - dĺžka 170 mm

Prehadzovačka

SHIMANO Deore XT Di2 M8050 (direct mount)

Radenie

SHIMANO Deore XT Di2 Shift Switch SW-M8050-R Firebolt

Počet prevodov 11

Kazeta

SHIMANO CS-M8000-11 (11-46T)

Reťaz

KMC e11T (120 článkov)

Brzdy

SHIMANO Deore XT M8120 Hydraulic Disc

Brzdové páky

SHIMANO Deore XT BL-M8100

Brzdové kotúče

Predný SHIMANO MT800 203 mm / Zadný SHIMANO EM810 203 mm

Zapletané kolesá

Predné DT SWISS H 1700 622x30 Center Lock front / Zadné DT SWISS H 1700 Spline 584x35 Center Lock predný plášť

SCHWALBE Eddy Current Evo SuperTrail 65-622 (29x2.60) Tubeless Easy, ADDIX Soft, folding zadný plášť

SCHWALBE Eddy Current Evo Super Gravity 70-584 (27.5x2.80) Tubeless Easy, ADDIX Soft, folding

Hlavové zloženie

ACROS 1.8 tapered semi-integrated

Pevná os

Predná FOX 15QR 15x110 mm / Zadná Mr.control 12x177 mm

Predstavec

RACE FACE Aeffect R 35 - diam 28.6 mm / bar bore 35 mm / 0° / dĺžka 50 mm

Riadidlá

RACE FACE Aeffect R 35 RiseBar - diam 35 mm / rise 20 mm / šírka 780 mm

Gripy

KLS Poison

Sedlovka

FOX Transfer Factory Remote Telescopic, Kashima Coat - diam 30.9 mm / dĺžka 475 mm, zdvih 150 mm (M), 175 mm (L)

Sedlo fi’zi:k Taiga, S-alloy rails

Pedále

Plast

Výrábané veľkosti

M / L
